Lift Inverters

Name: Lift Inverters
Brand: JAIDEEP POWER SOLUTION PVT. LTD.
Price: 150000 INR
Availability: InStock

Price 150000 INR/ Piece

Get a Price/Quote

MOQ : 1 Container

Lift Inverters Specification

Product Type
Lift Inverter

Rated Voltage
220 V

Frequency (MHz)
50 Hz

Protection
Overload, Short Circuit, Battery Low

Usage
Elevator Power Backup

Size
Standard

Color
Grey

Weight
60 kg

Dimension (L*W*H)
580 mm x 320 mm x 740 mm

Lift Inverters Trade Information

Minimum Order Quantity
1 Container

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Containers Per Month

Delivery Time
01 Days

Main Domestic Market
Maharashtra

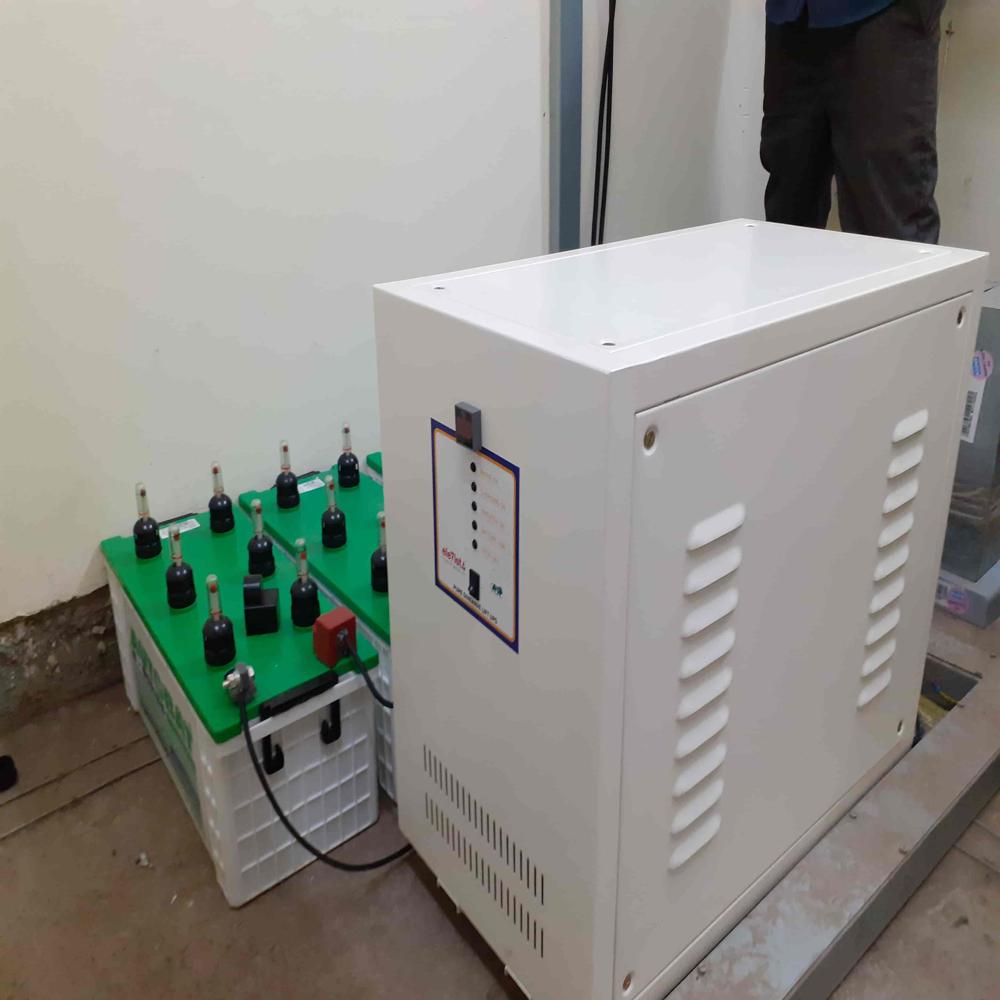

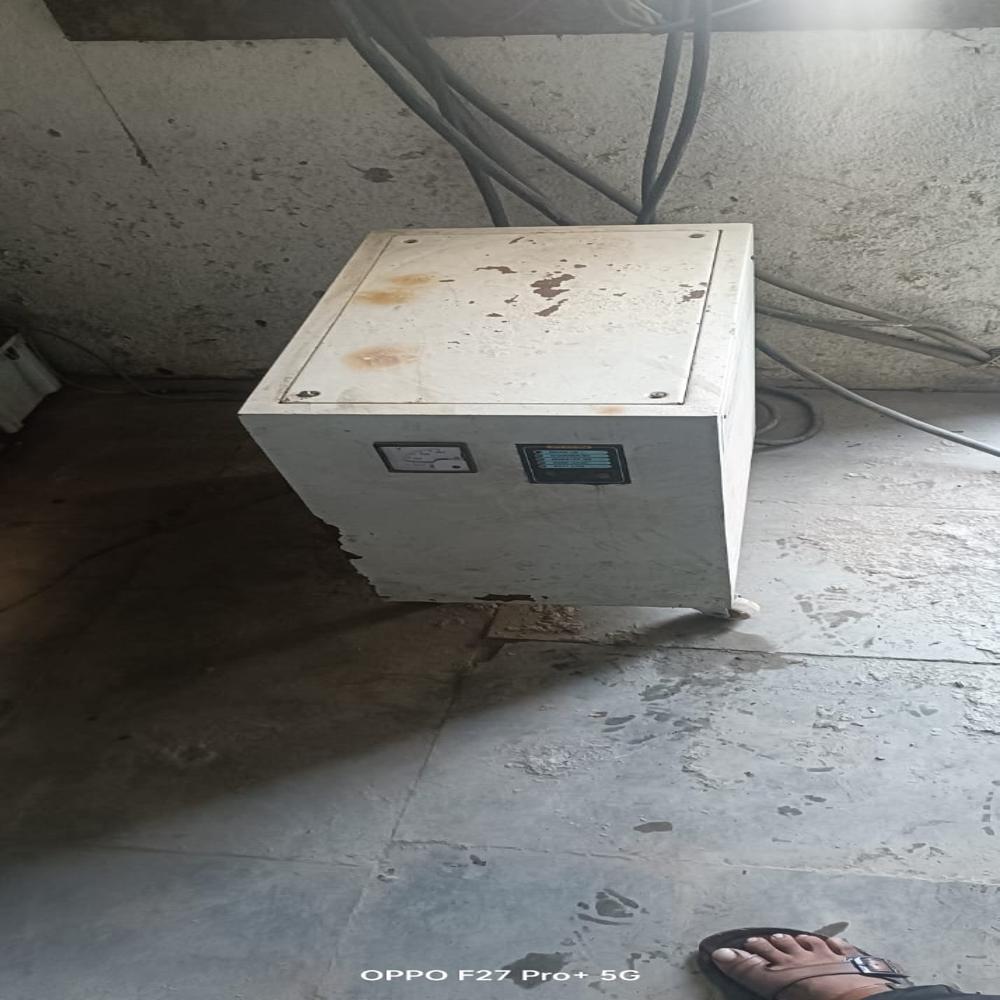

About Lift Inverters

Our organization is a prominent entity in this domain, engrossed in manufacturing, exporting and supplying the best quality Lift Inverters. The provided inverters are efficiently manufactured using optimum quality components and high-end technology under the strict vigilance of our ingenious professionals. The offered inverters are mainly used to provide power backup to the elevators and lifts. These Lift Inverters are available in diverse models and technical specifications for our clients

Key Features:

Vibration less functioning
Long service life
Consumes less power
High functionality

Feature

Greaves cotton dg sets range from 5kva-12500 kva
Keycard makes servo voltage Stabilizers range from 1 kva - 2500 kva
Emerson vetiver ups range from 1 kva - 1000kva
Keycard servo voltage stabilizers 5 kva - 5000kva
Supernova Perkins dg sets ranges from 400 kva - 2250 kva

Technical Specification Of Lift UPS

Description	Details
Technology	Microprocessor Based Intelligent UPS using IGBT, PWM Technology, Double conversion with Isolation at output.
Switching Frequency	High Frequency Design Ensures. Low Switching Loses. Purity Of sine-wave. Ultra-fast Transient Response. Very Low Noise.
Wide Input Range	180V-460V AC (Three Phase) for 8.0 To 100KVA 45 Hz - 55Hz.
Accurate Output On Inverter Mode	415V AC + /-1.0 % ( Three Phase) 50 Hz +/- 0.1% (Crystal Controlled)
Ratings	5.0/8.0/10.0 KVA. Upto 100KVA
Output Power Factor	0.8 Lagging to unity
Transient Response	For 100% step Load change output stays within +/-5% And recovers within 5 msecs .i.e 1/4 cyclic. Other Manufacturer normally offer much slower recovery i.e. within 40 msec (2 cycles). 4 :1
Crest Factor Metering	Latest LCD/DPM Panel Meter to display following parameters (Optional ). Output Voltage. Input Voltage. Battery Voltage. Output frequency. Input Frequency. Charge/discharge Current. Status related to UPS working Like Load on UPS, Balance Battery Back-up. Charger O.K , DC Over Voltage, Phase fail etc, shall be provided.
Wave Form	Pure Sinewave
Operating Temperature	0 to 50 C, 95% R H (Maximum)
Relative Humidity	Our UPS has passed Environment Test from Defence. Laboratory Of R & D E ( Engineers) Dighi, Pune.
Inverter Efficiency	Better than 90%.
Charger Efficiency	85% Typical
Input Harmonic Distortion	Less than 10 % typical.
Genset Compatility	UPS Systems is fully compatillity to any type of genset.
Protections	Output Over Voltage. Output Overload. Output Short Circuit. Battery Under- Voltage. Forced Air Cooling to protect electronic & other components from overheating.
Indication	Mains/ charger ON.
Alarms	Mains Fails (Musical Alarm). Battery Low Warning ( Musical alarm)
Low Noise	Less than or Equal to 45 db (A) (Standard) at 1.0 mtr
By pass Arrangement	Manual By Pass Provided.
Battery Charger	Charger is designed on Boost/Trigger (CCCV) principal to keep Batteries in top condition. Pulsating-current design ensures long Battery life.
Enclosures	I P 21
Cooling	Provided force Cooling
User Manual	Provided with each UPS system. Also Available on website.

Reliable Elevator Power Backup

Specially engineered for elevator systems, this inverter provides a dependable power backup, maintaining elevator operation during power outages. Its standard size allows for seamless integration with most elevator installations, ensuring both safety and convenience for users.

Advanced Protection Mechanisms

Featuring comprehensive protections such as overload, short circuit, and battery low alarms, the inverter safeguards your elevator systems against common electrical issues. This enhances operational reliability and minimizes downtime and maintenance interventions.

FAQs of Lift Inverters:

Q: How does the lift inverter ensure elevator functionality during power failures?

A: The lift inverter automatically switches to battery power during a power outage, providing immediate backup to keep elevators running and preventing entrapment of passengers until mains power is restored.

Q: What protection features are included in this lift inverter?

A: This inverter is equipped with multiple safety features, including overload protection, short circuit prevention, and alerts for low battery, ensuring safe and stable operation at all times.

Q: When should I use this inverter for elevators?

A: This inverter is essential for any building where elevator functionality is critical during power interruptions, such as residential complexes, hospitals, and commercial properties.

Q: Where can I purchase and install the lift inverter in India?

A: The lift inverter is available through our wide distribution network as a manufacturer, supplier, and service provider across India. Installation is managed by trained professionals to ensure optimal performance.

Q: What is the process for servicing or maintaining the lift inverter?

A: Servicing involves regular inspections, battery health checks, and system diagnostics, which can be scheduled with our service team to ensure continuous and reliable operation.

Q: How is the inverter installed within elevator systems?

A: Due to its standard size and weight (60 kg), the inverter can be easily accommodated in elevator control rooms. Professional installation guarantees secure integration and adherence to safety standards.

Q: What are the key benefits of using this lift inverter?

A: Key benefits include reliable elevator operation during outages, advanced protection features, ease of installation, and robust post-sales service, making it a secure choice for elevator power backup.
