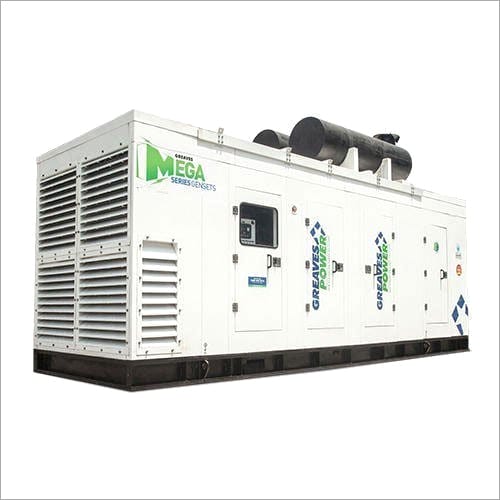

5kva to 2500kva Greaves Cotton DG Set

Name: 5kva to 625kva Mahindra DG Set
Brand: JAIDEEP POWER SOLUTION PVT. LTD.
Price: 125000 INR
Availability: InStock

Price 310000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

5kva to 2500kva Greaves Cotton DG Set Specification

Poles Number
4 Poles

Fuel Consumption
As Per Load, Efficient fuel performance Across the Range Kilometer/Liter (km/L)

Alternator
Brushless, Self Excited

Engine Type
4-stroke

Dimension (L*W*H)
Varies, e.g. 1700 x 900 x 1200 mm (5kVA) to 4600 x 1800 x 2450 mm (625kVA) Millimeter (mm)

Bore *Stroke
Varies as per model

Fuel Tank Capacity
From 65L to 950L (Model specific) Liter (L)

Engine Model
12 V 14TAG31

Insulation
Class H

Protection Class
IP23

Pressure
kg Bar

Product Type
Diesel Generator Set

Power Rating
From 5 KVA to 2500 KVA

Output Type
AC, Three Phase / Single Phase

Rated Power
5kVA to 2500 kVA

Starting Type
Electric Start

Rated Frequency
50Hz Hertz (HZ)

Power Range
5 kVA 625 kVA

Noise Level
75 dBA @ 1m db

Color
White

Rated Voltage
415 Volt (V)

Usage & Applications
Hospital, Industries, Hotels, Airports, Residential Building

Cable Type
Aluminium Armoured

Operating Temperature
45 Celsius (oC)

Weight
Approx. 450 Kg (5kVA) to 8200 Kg (625kVA) Kilograms (kg)

Phase
3 Phase

Warranty
2 Years

Display Type
Controller LCD Display

Features
Manual & Automatic

Frequency
50 Hertz (HZ)

Rated Current
15 Ampere (amp)

Material
Copper

Conductor
Copper

Governing Class
A1 as per ISO 8528

Cooling System
Water Cooled with Radiator

Emission Compliance
CPCB II Compliant (India)

Voltage Regulation
+/- 1%

Fuel Type
High Speed Diesel

Lubrication Oil Capacity
From 7L to 82L (Model specific)

Display Panel
Digital Display for Parameters

Enclosure Type
Sound Proof Acoustic Canopy

Controller
Microprocessor based Auto/Mains Failure Panel

Application
Commercial, Industrial, Residential Backup Power

Speed
1500 RPM

Mobility
Stationary / Portable Options (customizable)

Alternator Make
Stamford, Leroy Somer, or Equivalent

5kva to 2500kva Greaves Cotton DG Set Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
1 Week

About 5kva to 2500kva Greaves Cotton DG Set

Feature

Greaves Cotton DG Sets Range From 5 KVA -2500 KVA
Krycard Servo Voltage Stabilizers Range From 1 KVA - 5000 KVA
APC & Emerson/Vertiv UPS Range From 1 KVA - 1000 KVA
DG Set Acoustic Enclosures Manufacturer.
DG Set Trolley Manufacturer
Supernova Perkins DG Sets Ranges From 400 KVA- 2500 KVA

Advanced Engine & Efficient Power Output

Greaves DG Sets are Equipped with High-Speed Diesel Engines Ranging From 49.5 HP to 850 HP, Tailored to various Power Needs. The Four-Stroke, water-cooled engines deliver reliable performance, with a fuel-efficient operation and minimal Emission Levels, thanks to CPCB IV compliance. With options for both Single and Three-Phase output, they are Versatile for Different Installation Scenarios.

Smart Control & Robust Protection

Every unit features a microprocessor-based Automatic/Mains Failure Panel, ensuring swift response during power outage events. The digital display offers real-time data on operational parameters. IP23 protection and Class H insulation grant increased durability, safety, and operational longevity, vital for continuous power in mission-critical environments.

Customizable Installation & User-Friendly Design

The generator sets are available in stationary configurations and come in a range of dimensions and capacities, making them adaptable for varied site requirements. The acoustic canopy reduces noise, while different fuel tank and lubrication oil capacities support extended run times. Maintenance is simplified by accessible component layouts and clear monitoring panels.

FAQs-5kva to 2500kva Greaves Cotton DG Set-

Q: How do I select the correct Greaves Cotton DG Set capacity for my needs?

A: Determine your applications maximum power requirement (in kVA or kW) and consider the starting currents of connected equipment. The Greaves DG Sets are available from 5kVA to 2500kVA, suitable for residential, commercial, or industrial backup. For tailored recommendations, consult with a qualified supplier or Mahindra representative.

Q: What type of fuel and emission compliance do these DG Sets maintain?

A: Mahindra DG Sets operate on high-speed diesel and comply with Indias CPCB IV emission standards, ensuring low environmental impact and efficient, reliable energy production.

Q: Where can Greaves DG Sets be installed, and are they portable?

A: These gensets are designed for flexible installation stationary or portable options are available based on model configuration. They can be used at commercial establishments, factories, construction sites, or residential complexes, subject to proper site selection for safety and ventilation.

Q: What benefits does the sound proof acoustic canopy offer?

A: The soundproof acoustic canopy reduces operational noise to 75 dBA at 1 meter, making these generators suitable for use in noise-sensitive environments, such as residential neighborhoods or commercial complexes, without causing disturbances.

Q: How does the Automatic/Mains Failure Panel operate during power outages?

A: The microprocessor-based Auto/Mains Failure Panel constantly monitors the main power supply. When a failure is detected, it automatically starts the DG Set and restores power; when mains supply returns, the system switches back and shuts down the generator, ensuring seamless and reliable power backup.

Q: What makes the voltage regulation of these generators reliable?

A: With advanced governing systems (Class A1 as per ISO 8528) and brushless alternators, Mahindra DG Sets maintain voltage regulation within 1%, ensuring steady power delivery and protection for sensitive electronic equipment.

Q: When does routine maintenance need to be performed, and what are the key areas to check?

A: Routine maintenance should be performed as per the manufacturers schedule, typically after set running hours. Key checks include engine oil levels (ranging 7L to 82L based on model), fuel system, air and oil filters, battery, control panel, and alternator. Consult your user manual for model-specific guidance.
